Two speed hydrostatic drive provides optimal power on grade and for steep slope conditions. The dynamic braking system provides better control on slopes and reduces wear on the drive system while offering better tire life and improved ride characteristics.

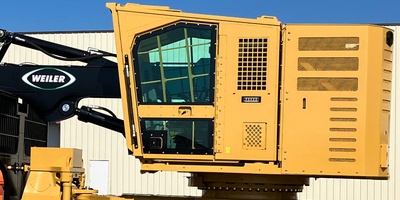

Optimized cab, with new sloped roof line, maximizes operator experience through increased space, improved visibility, easier access, and options that include a heated and cooled seat, deluxe lights, and cameras. Machine controls feature an easy to use operator interface.

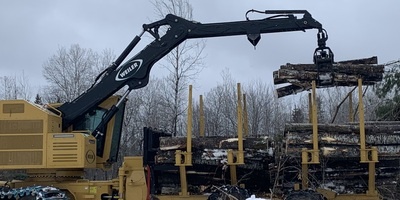

The grapple and boom system are set up for fast, smooth, and powerful performance, with optimum reach, lift, and swing power. An optional heel for easy handling of large tree length timber further enhances the performance of the crane.
Designed in North America for tough, rugged conditions with a heavy-duty cast articulation hitch and reinforced bottom guards built to last. Common, oversized feller buncher swing bearing reduces stress load on the carbody and delivers strong swing torque for demanding applications.
With a highly engineered wheel base design and optimized location of rear and front bogies, the F888 has an excellent turning radius for getting into tight areas. The balanced weight distribution provides a smooth ride for maximum operator comfort.

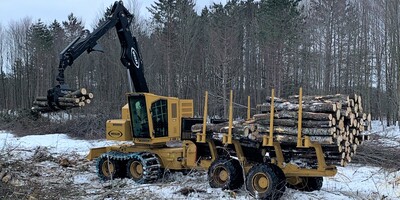

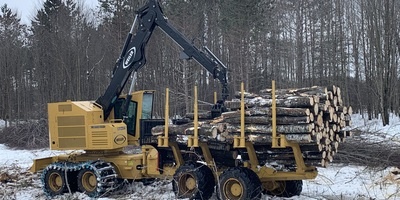

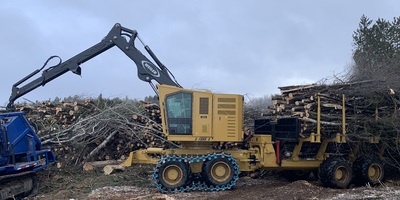

The purpose built 360 degree full rotation upper house, large carrying capacity, high swing torque, agility, and reach provides superior versatility for a variety of applications. Whether in-woods forwarding, hauling and placing mats for right-of-way or pipeline work, or hauling biomass to a chipper, the versatility maximizes longterm value.
| Specifications | |
|---|---|
| ENGINE MODEL | Cat® C9.3B Stage 5 |
| GROSS POWER | 338 hp 252 kW |
| ENGINE SPEED | 2000 rpm |
| WEIGHT | 63,000 lb 28 576 kg |
| FUEL TANK CAPACITY | 100 gal 379 L |
| TRACTIVE EFFORT | 67,320 lbf 299.5 kN |
| TRAVEL SPEED (LOW) | 5 mph 8.0 km/h |
| PAYLOAD CAPACITY | 44,000 lbs 19 958 kg |
| CRANE REACH | 32’ 9754 mm |
| LIFT AT MAX REACH | 6,300 lb 2 858 kg |
| SWING TORQUE | 51,078 lbf-ft 69.3 kNm |
| BUNK LENGTH | 213” 5410 mm |
| BUNK WIDTH | 109” 2769 mm |
| TRAVEL SPEED (HIGH) | 15 mph 24.1 km/h |
| GROUND CLEARANCE | 27” 686 mm |
| TRANSPORT WIDTH | 128” 3251 mm |
| WHEEL BASE | 240” 6096 mm |
| HEIGHT | 149” 3785 mm |
| LENGTH | 398” 10.1 m |
| TURNING ANGLE | 42° |
| _____________________________________________________________________________________ | __________________________________________________________________________________ |
| Base configuration includes Nokian 710-45-26.5 Tires, 60-60 sq-ft variable wood bunk, blade ready, 26’ boom & stick w/6’ hydraulic stick extension and Hultdins SG360S Grapple |
