The hydraulic system is the industry benchmark, featuring multi-functioning capabilities enabling operators to lift, swing, and rotate grapple simultaneously without impairing performance. The system also now has improved cold oil bypass and hose routing increasing reliability.
The K760 features many larger components including boom and stick cylinders, swing motor, and implement pump. Combined with strengthened structures and a standard counterweight, the K760 delivers the performance needed for high production jobs and large timber

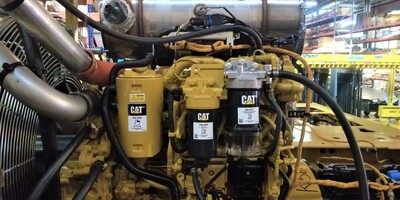

Stage 5 Cat® engines provide a simplified engine arrangement by reducing engine Electronic Control Modules (ECMs) from 3 to 1, direct drive fan, and increased horse power for peak performance. Low Diesel Exhaust Fluid (DEF) consumption per fuel usage lowers overall operating costs.

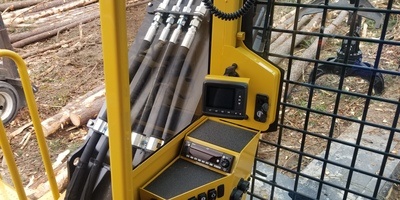

The new steel console provides increased work zone visibility, an easy to clean surface and phone charging capabilities. Weiler electronics and control systems provide a user friendly interface and deliver new ease of use features including push to start.

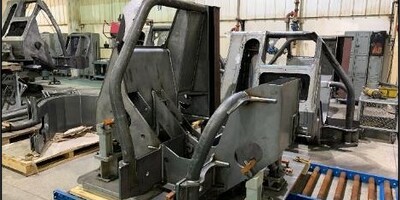

95% of all fabrications for the loader, delimber and grapple are made in the LaGrange, GA facility. Combined with a locally sourced trailer, U.S. manufactured cylinders, and a local parts warehouse for quick reaction to customer needs.
The industry’s only loader and work tool package. The Weiler 426 delimber and 4548 or 5055 grapples ensure one point of contact for warranty and service to keep your operation up and running.
| Specifications | |
|---|---|
| Engine Model | Cat® C4.4 Stage 5 |
| Gross Power | 184 hp 137 kW |
| Engine Speed | 1800 rpm |
| Weight | 36,500 lb 16 556 kg |
| Fuel Capacity | 80.0 gal 303 L |
| DEF Capacity | 3.2 gal 12 L |
| Swing Torque | 73,800 lbf-ft 100 060 N·m |
| Swing Speed | 9.5 rpm |
| Maximum Reach | 32' 0" 9.75 m |
| Transport Width | 8' 6" 2.57 m |
| Transport Height | 13' 3" 4.04 m |
| Transport Length | 52' 1" 15.88 m |
