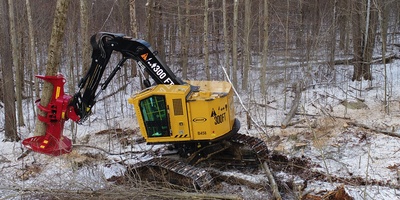

Excellent multi-function capability through dedicated hydraulic pumps and optimized circuit configurations. Performance boosted by efficient travel speeds, maximum stability, and strong combination of lift capacity, swing torque, and tractive effort.

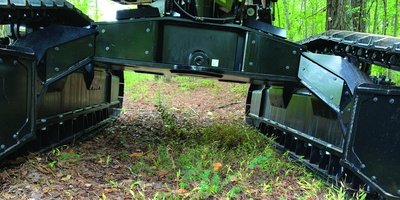

Elevated, unobstructed carbody with 35” (881 mm) of ground clearance enables unimpeded travel over rocks, stumps, and other debris. Leveling cylinders do not extend below the bottom surface of the carbody, minimizing potential interference.

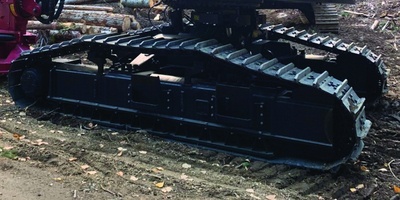

Variable gauge, eleven roller extended track frame option, provides maximum stability for steep slopes. Innovative ease-of-use features, such as the ability to reduce the frequency of foot pedal motions, improves operator efficiency

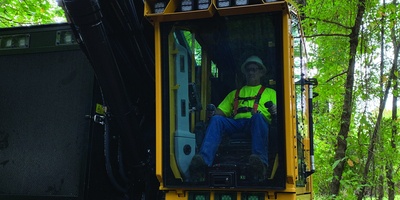

New cab maximizes operator experience through increased space, improved visibility, easier access, and options that include a heated and cooled seat, deluxe lights, and cameras. Machine controls feature an easy to use operator interface.

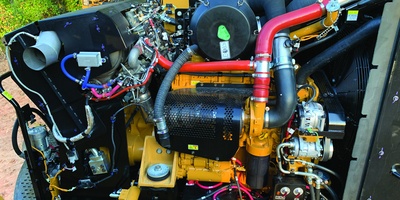

Forestry-duty cooling package and extensive validation of key common components that includes the engine, swing system, and grease-lubricated Cat® 336 HD HEX undercarriage ensure machine uptime and reduce operating costs.

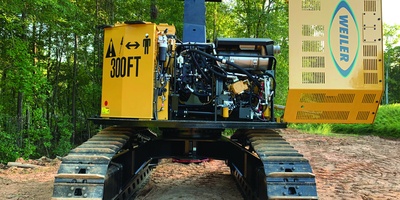

Counterweight walkway enables machine level access to gull-wing engine enclosure that provides unmatched serviceability of components. Enclosure provides a flat area to complete preventative maintenance and service.
| Specifications | |
|---|---|
| ENGINE MODEL | Cat® C9.3B Tier 4 Final |
| GROSS POWER | 330 hp (246 kW) |
| ENGINE DISPLACEMENT | 568 in3 (9.3 L) |
| WEIGHT (NO HEAD) | 79,220 lb (35, 934 kg) |
| MAXIMUM FLOW | 322 gpm (1220 L/min) |
| MAX REACH (w/CP222 SAW) | 26’ 10” (8.19 m) |
| LIFT AT MAX REACH (NO HEAD) | 13,918 lb (6313 kg) |
| TRACTIVE EFFORT | 81,229 lbf (36 845 kgf) |
| UNDERCARRIAGE SIZE | 336 HD HEX |
| UNDERCARRIAGE PITCH | 8.5” (216 mm) |
| GROUND CLEARANCE | 35” (881 mm) |
| TRACK GAUGE | 114” (2883 mm) |
| TRACK LENGTH | 192” (4868 mm) |
| LEVELING CAPABILITY | 21 Deg Forward 11 Deg Side-to-Side |
| FUEL TANK CAPACITY | 216 gal (819 L) |
| ENGINE OIL CAPACITY | 10.6 gal (40 L) |
| HYD SYSTEM CAPACITY | 79.8 gal (302 L) |
| TRANSPORT WIDTH | 11’ 11” (3.62 m) |
| TRANSPORT HEIGHT | 12’ 11” (3.94 m) |
| LENGTH (BOOM EXT, W/CP222) | 34’ 1” (10.39 m) |
| LENGTH (BOOM TUCK) | 25’ 7” (7.81 m) |
| _______________________________________________________________________________ | |
| Base configuration includes standard feller buncher boom and stick and 24” (600 mm) single grouser shoes. |
