Excellent multi-function capability through dedicated hydraulic pumps and optimized circuit configurations. Innovative ease-of-use features, such as the ability to reduce the frequency of foot pedal motions, improves operator efficiency.

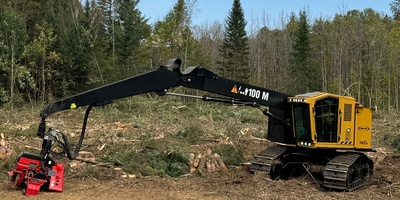

Enhanced stability and travel speeds, along with a powerful combination of lift capacity, swing torque, and tractive effort provides for maximum performance. Standard and long boom and stick options allow the machine to be matched for harvester head size and application.

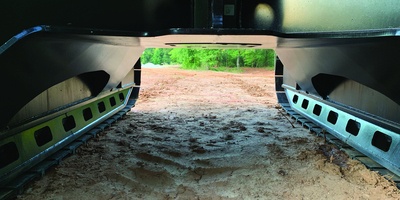

Elevated, unobstructed carbody with 33” (832 mm) of ground clearance enables unimpeded travel over rocks, stumps, and other debris. Angle between carbody and roller frames allows maximum clearance across the width of the carbody.

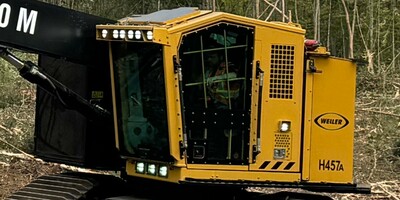

New cab maximizes operator experience through increased space, improved visibility, optimized operator controls, reverse opening door for easier access to the harvester head, and options that include a heated and cooled seat, deluxe lights, and cameras.
Forestry-duty cooling package and extensive validation of key common components that includes the engine, swing system, and grease-lubricated Cat® 336 HD HEX undercarriage ensure machine uptime and reduce operating costs.

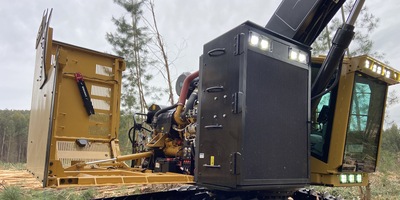

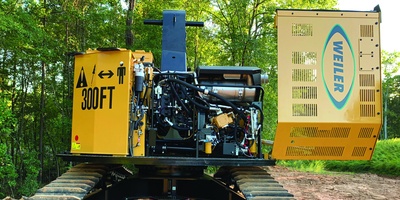

Counterweight walkway enables machine level access to gull-wing engine enclosure that provides unmatched serviceability of components. Enclosure provides a flat area to complete preventative maintenance and service.
| Specifications | |
|---|---|
| ENGINE MODEL | Cat® C9.3B Tier 4 Final |
| GROSS POWER | 330 hp (246 kW) |
| ENGINE DISPLACEMENT | 568 in³ (9.3 L) |
| WEIGHT (NO HEAD) | 67,140 lb (30, 454 kg) |
| MAX REACH (STD BOOM) | 29’ 6” (9.0 m) |
| MAX REACH (LONG BOOM) | 32’ 6” (9.9 m) |
| LIFT AT MAX REACH (STD BOOM) | 9,980 lb (4530 kg) |
| LIFT AT MAX REACH (LONG BOOM) | 8,800 lb (3990 kg) |
| TRACTIVE EFFORT | 68,848 lbf (31 229 kgf) |
| UNDERCARRIAGE SIZE | 336 HD HEX |
| UNDERCARRIAGE PITCH | 8.5” (216 mm) |
| GROUND CLEARANCE | 33” (832 mm) |
| TRACK GAUGE | 102” (2580 mm) |
| TRACK LENGTH | 192” (4868 mm) |
| MAXIMUM FLOW | 287 gpm (1085 L/min) |
| HYD SYSTEM CAPACITY | 79.8 gal (302 L) |
| FUEL TANK CAPACITY | 216 gal (819 L) |
| ENGINE OIL CAPACITY | 10.6 gal (40 L) |
| TRANSPORT WIDTH | 10’ 11” (3.32 m) |
| TRANSPORT HEIGHT | 11’ 3” (3.32 m) |
| LENGTH (BOOM EXT, STD) | 36’ 11” (11.25 m) |
| LENGTH (BOOM EXT, LONG) | 39’ 11” (12.16 m) |
| LENGTH (BOOM TUCK, STD) | 24’ 9” (7.56 m) |
| LENGTH (BOOM TUCK, LONG) | 26’ 9” (8.17 m) |
