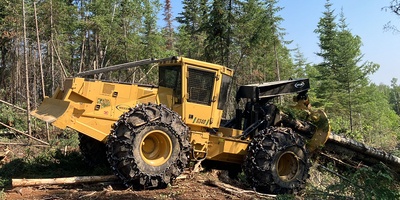

The simplified, continuously variable-speed hydrostatic ground drive makes operation simple and efficient. Excellent power and ground speed for maximum production. Optimal axle ratios provide powerful pulling performance and improved reliability.

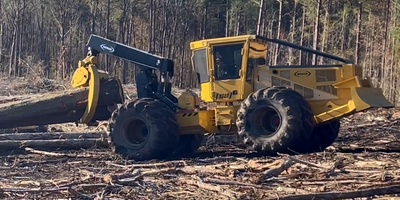

Strong multi-functioning hydraulics improve productivity allowing operators to steer and operate other functions simultaneously. Independent front and rear differential locks improve traction when needed allowing superb operation in wet conditions.

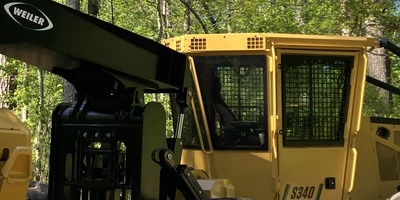

The large front glass and sloped narrow hood provide excellent front visibility to the blade and allow increased visibility to the front of the machine. The unobstructed rear glass gives clear site to the grapple for efficient grapple handling and easy maneuverability for placing a loader.
The large, spacious cab provides the ultimate in operator comfort and features simple and easy-to-use controls. Weiler programming allows joystick button mapping for multiple control patterns. Joystick steering with front foot controls is standard with an optional mechanical rotating seat with rear foot controls.

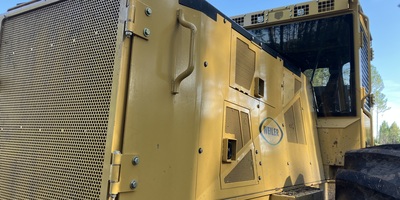

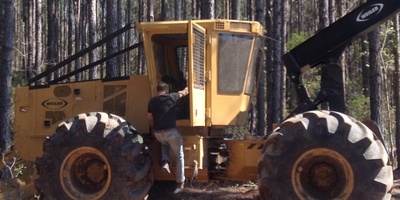

Wide steps on both sides of the machine and 90 degree door openings make it easy for operators to enter and exit the cab. The DEF tank and cab tilt pump are located in the LH saddle bag for ground level access. The RH saddle bag houses the batteries and the hydraulic fill pump for additional ground level accessibility.

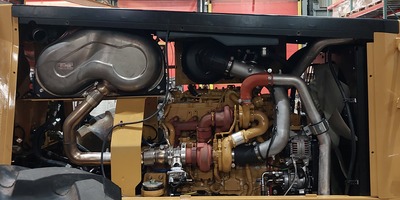

Fifty percent less hoses across the center section and a front mounted cooling system with a variable-speed reversing fan deliver improved reliability with low operating costs. Easy engine and chassis access for best-in-class serviceability. Dual tapered roller bearing hitch pins, thicker panels, and solid steps deliver improved structural life.
| Specifications | |
|---|---|
| Engine Model | Cat® C7.1 Stage 5 |
| GROSS POWER | 265 hp 198 kW |
| ENGINE SPEED | 2200 rpm |
| FUEL CAPACITY | 100 gal 378 L |
| DEF CAPACITY | 5.0 gal 19 L |
| WHEELBASE | 160" 4064 mm |
| WEIGHT | 45,000 lb 20 412 kg |
| TRANSPORT WIDTH | 11’ 7” 3.53 m |
| TRANSPORT HEIGHT | 11’ 4” 3.45 m |
| TRANSPORT LENGTH | 28’ 0” 8.53 m |
| GROUND CLEARANCE | 26.0” 660 mm |
| BOX GRAPPLE TONG CAPACITY | 17 ft² 1.6 m² |
| BOX GRAPPLE TONG OPENING | 127" 3226 mm |
| BLADE GRAPPLE TONG CAPACITY | 18 ft² 1.67 m² |
| BLADE GRAPPLE TONG OPENING | 145.0" 3683 mm |
