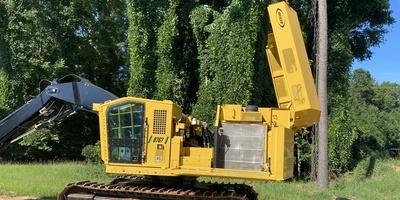

Powerful tractive effort, maximum lift capacity, leading swing torque, and optimal reach provides the ultimate performance needed in demanding bunching applications worldwide. Machine can be paired with heads with a capacity as large as 27”.

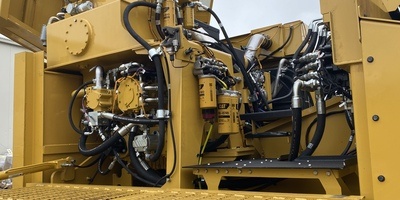

The optimized hydraulic system consists of eight dedicated pumps and was designed specifically to maximize efficiency in feller buncher applications. Closed loop drive and closed loop swing offer excellent multi-functioning capability and facilitate smooth, fluid machine operation.

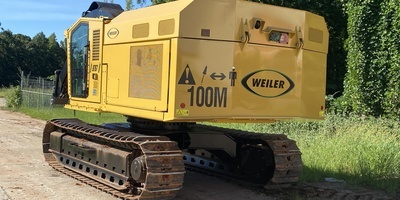

A combination of weight distribution, a low center of gravity, redesigned roller frames, and an optimized working envelope provides rock solid machine stability. The transverse mounted engine provides uniform weight in the back of the machine at all times.

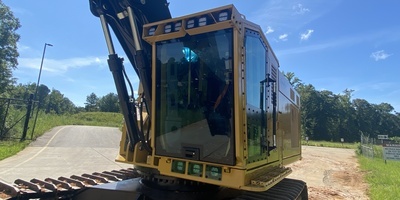

The spacious cab design provides excellent forward and right-side visibility, easy access, and options that include a heated and cooled seat. The optional 10 LED front facing lights offer optimum visibility day and night. Machine controls feature an easy to use Weiler operator interface.

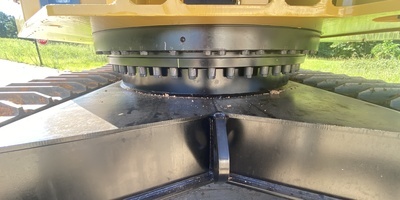

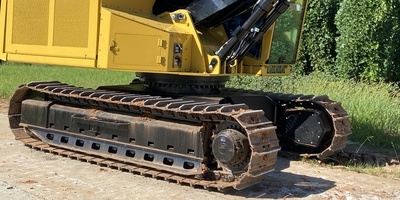

The grease lubricated, 8.5” pitch Cat 336 HD HEX tracks, the largest-in-class swing bearing, and common, validated engine emissions components ensure maximum uptime and lower owning and operating costs. A forestry duty cooling pack with new hydraulic fan ensures cool operation.
A canopy and two gull-wing style access doors open hydraulically for full under hood access and provide a stable platform for repairs. Walk-through machine access allows the operator to walk from the cab to the opposite side of the machine without stepping on the ground.
| Specifications | |
|---|---|
| ENGINE MODEL | Cat® C9.3B Tier 4 Final |
| GROSS POWER | 335 hp 250kW |
| ENGINE DISPLACEMENT | 568 in³ 9.3L |
| WEIGHT (NO HEAD) | 82,000 lb 37 195 kg |
| MAX REACH (NO HEAD) | 22’ 9” 6.92 m |
| LIFT AT MAX REACH (NO HEAD) | 22,050 lb 10 000 kg |
| SWING TORQUE | 92,000 ft-lbs 124.7 kN-m |
| TRACTIVE EFFORT | 87,760 lbf 390.4 kN |
| UNDERCARRIAGE SIZE | 336 HD HEX |
| GROUND CLEARANCE | 25.6” 650 mm |
| TRACK GAUGE108 | 108” 2740 mm |
| TRACK LENGTH | 198” 5025 mm |
| FUEL TANK CAPACITY | 293 gal 1108L |
| ENGINE OIL CAPACITY | 6.5 gal 24.5 L |
| HYDRAULIC SYSTEM CAPACITY | 79 gal 300 L |
| HEIGHT | 11’ 5” 3.36 m |
| LENGTH (BOOM EXT., w/CP222) | 40‘ 0”12.19 m |
| ------------------------------------------------------------------------------------------------------------------------------------ | |
| Base configuration includes standard feller buncher boom and stick and 24” (600 mm) single grouser shoes. |
