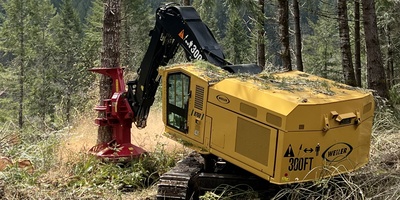

Powerful tractive effort, maximum lift capacity, leading swing torque, and optimal reach provides the ultimate performance needed in demanding bunching applications worldwide. Machine can be paired with heads with a capacity as large as 27”.

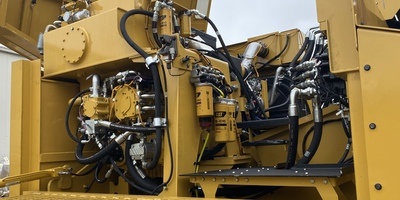

The optimized hydraulic system consists of eight dedicated pumps and was designed specifically to maximize efficiency in feller buncher applications. Closed loop drive and closed loop swing offer excellent multi-functioning capability and facilitate smooth, fluid machine operation.

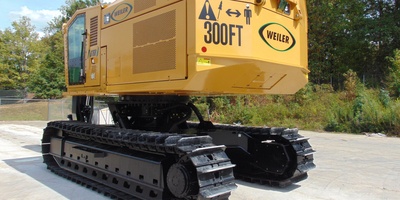

A combination of weight distribution, a low center of gravity, redesigned roller frames, and an optimized working envelope provides rock solid machine stability. The transverse mounted engine provides uniform weight in the back of the machine at all times.

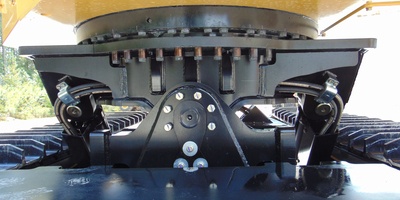

The new, state of the art leveling system, provides the leveling capability demanded by high production steep slope applications. Large pins, engineered structures, and the largest-in-class swing bearing ensure maximum durability and low operating costs.

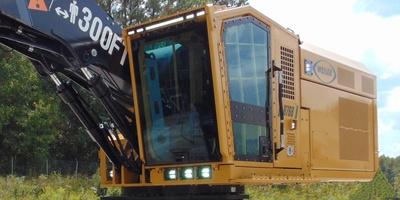

The spacious cab provides excellent forward and right-side visibility, easy access, with a standard heated and cooled seat and satellite radio. Eleven LED work lights and integrated top light bar offer optimum visibility day and night. Machine controls feature an easy to use Weiler interface with touch screen display.

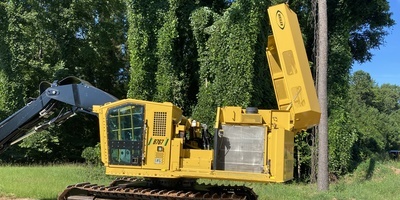

A canopy and two gull-wing style access doors open hydraulically for full under hood access and provide a stable platform for repairs. Walk-through machine access allows the operator to walk from the cab to the opposite side of the machine without stepping on the ground.
| Specifications | |
|---|---|
| ENGINE MODEL | Cat® C9.3B Tier 4 Final |
| GROSS POWER | 375 hp 280 kW |
| ENGINE DISPLACEMENT | 568 in³ 9.3 L |
| WEIGHT (NO HEAD) | 90,000 lb 40 823 kg |
| MAX FLOW | 441 gpm 1670 L/min |
| MAX REACH (NO HEAD) | 22’ 9” 6.92 m |
| SWING TORQUE | 92,000 ft-lbs 124.7 kN-m |
| TRACTIVE EFFORT | 111,122 lbf 494.3 kN |
| UNDERCARRIAGE SIZE | 349 HD HEX |
| UNDERCARRIAGE PITCH | 8.5” 216 mm |
| GROUND CLEARANCE | 25.6” 650 mm |
| TRACK GAUGE | 108” 2740 mm |
| TRACK LENGTH | 214” 5441 mm |
| FUEL TANK CAPACITY | 293 gal 1108 L |
| ENGINE OIL CAPACITY | 6.5 gal 24.5 L |
| HYDRAULIC SYSTEM CAPACITY | 79 gal 300 L |
| TRANSPORT WIDTH | 11’ 2” 3.47 m |
| HEIGHT | 13’ 4” 4.06 m |
| LENGTH (BOOM EXT., w/CP222) | 40‘ 0” 12.19 m |
| LEVELING SYSTEM CAPABILITY | 22o Forward / 7o Rear 15o Side-to-Side |
