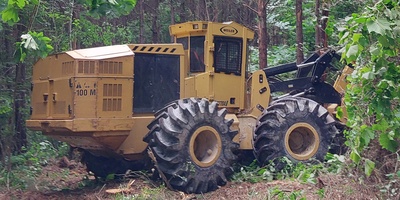

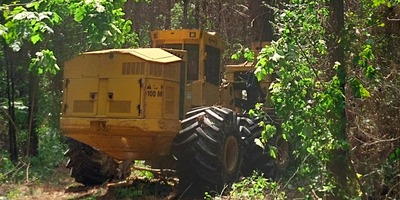

The transverse mounted engine, low center of gravity, and wider axles provide rock solid stability. The cab sits between the axles instead of close to the front frame, delivering a topnotch ride for the operator. Improved foot pedal angles and 2 inches more leg room enhances operator comfort.
Higher ratio axles reduce the torque in the drive train by almost 40%. The improved axle ratio also creates 5% more drawbar power and 10% more ground speed in turtle mode. Fully adjustable speed settings let the operator set working ranges and bump through the ranges during operation.

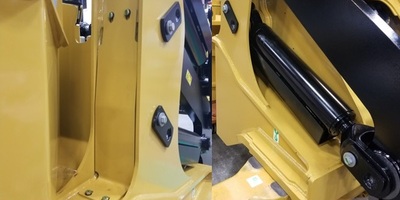

Simplified electrical and hydraulic systems, fewer electrical pin connections and sensors, and an overall reduction in hoses and fittings maximize reliability. Improved front frame reduces damage to lift cylinder hoses, provides access to hoses through a removable guard, and reduces debris entry.

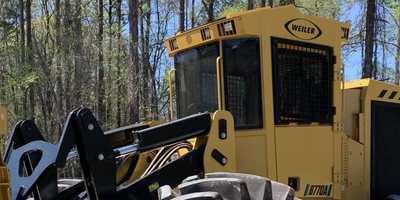

The cab features integrated LED lights, removing the light boxes from the previous series. 1.7x thicker skylight with cross bars removed provides an unobstructed view to tree tops. The new roof angle deflects debris more efficiently and has an overall thicker cab roof for durability.

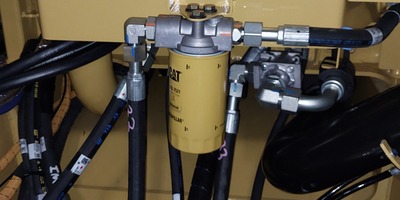

An optimized high performance saw circuit, that includes a dedicated saw valve results in more power, efficiency, and quicker saw recovery speeds. Case drain filtration adds an additional level of protection and confidence to the system. Priority settings allow the control system to deliver saw recovery or propel to match the application.

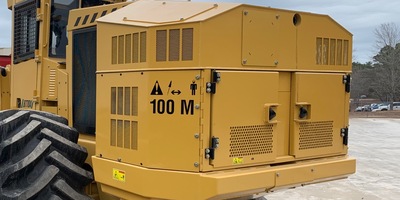

Pressurized engine compartment keeps debris out of the machine reducing cleaning. The sloped hood sheds debris to prevent build up. Ground level fuel fill, electric hydraulic oil fill pump, and excellent engine access deliver superior serviceability making it quick and easy to do daily maintenance.
| Specifications | |
|---|---|
| Engine Model | Cat® C7.1 Stage 5 |
| GROSS POWER | 302 hp 225 kW |
| ENGINE SPEED | 1880 rpm |
| WEIGHT | 39,656 lb 17 988 kg |
| WHEELBASE | 115" 2921mm |
| FUEL CAPACITY | 81.6 gal 309 L |
| DEF CAPACITY | 5.0 gal 19 L |
| HYDRAULIC SYSTEM | 71.1 gal 269 L |
| GROUND CLEARANCE | 19.4” 493 mm |
| TRANSPORT WIDTH | 9’ 1” 3.03 m |
| TRANSPORT HEIGHT | 10’ 11” 3.33 m |
| TRANSPORT LENGTH | 25’ 4” 7.73 m |
| _______________________________________________________________________________ | ________________________________________________________________________________ |
| Base configuration includes 30.5-32 26PR Tires, BH230 bunching saw, and full tank of fuel. Weight deduct 1,720 lb (780 kg) for 28L-26 tires, add 840 lb (381 kg) for 30.5L-32 2X Ring tires, and 0 lb (0 kg) for 67-34 tires. Height and ground clearance deduct 4.0” (10.2 cm) for 28L-26 tires, 2.9” (7.4 cm) for 67-34 tires. |
